Product
Measuring range:5 µm to 5mm
Max. loading:0.3g-100g
Description

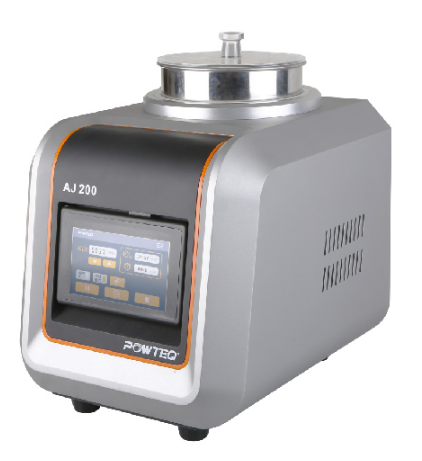

Air Jet Sieving Machine AJ200 is one of the best solution to separate and deagglomerate particles. Equipped with special designed nozzle by adjustable rotate speed, it ensures reproducible sieving result.
Application
Pharmaceutical material, chemicals, plastic, rubber, detergent, minerals, pigment, toner, ceramics, food
Working principle
When AJ200 connected with vacuum cleaner, strong air flow generated by negative pressure sprays on the sample particles on sieve mesh through the nozzle (placed beneath sieve). Vacuum cleaner or cyclone sucks the sample particles smaller than mesh size through the air flow. The air flow contributes to deagglomeration and purifying of sieve mesh.
Features and advantages
○Air jetting tech. reducing agglomeration;
○Special designed nozzle ensure sieving result repeatable;
○Fitted with standard sieves in dia. of 203mm(8’’) or 200mm ( fit with adapter);
○Manual operated(standard) or automatic pressure control;
○All parameters adjustable(time, vacuum, speed);
○9 SOPs can be stored.
| Technical Data |
| Measuring range | 5 µm to 5mm |
| Sieving motion | by air jetting |
| Max. loading | 0.3g-100g |
| Max. number of fractions | 1 (2 with cyclone) |
| Speed | digital controlled, 5-55 min-1(nozzle) |
| Time display | 00:01 - 99:59 min |
| Applied to dry sieving | Yes |
| RS232 interface | Yes |
| Analysis sieves dia. | 203mm/200mm(with adapter) |
| Chamber vacuum | 20 - 99 mbar / 0.3 – 1.45 psi |
| Storable SOPs | 9 or QUCIK START mode |
| Rated power | 220V, 50/60Hz |
