Product
Feed size：<50mm
Final fineness：＜320μm
Description

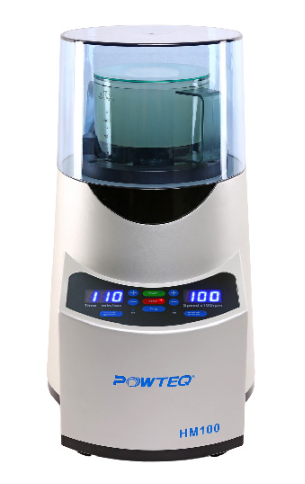

The Knife Mill HM100 is used to process the soft, medium-hard, brittle and fibrous sample. It is special for high water, oil or fat content sample.
Application
The HM100 has two-blade knives at the center of the bottom of a grinding cup. A certain height gap is kept between the blades. Driven by a motor of 1,100W, the knives start rotating. Reliable crushing and homogeneous phase effects are generated via the cutting of the sharp steel knife edges. The blunt side can be selected for coarse grinding of bulk samples or the tough side for fine grinding of samples. The motor speed is electronically controlled and can be preset. The constant speed guarantees efficient and high-quality grinding homogenization. You just need 10 to 30 seconds to process samples that are usually hard to crush and get homogenized samples for analysis.
Features and advantages
○ Autoclavable container for choice
○ Grinding container in various material
○ Simple operation and quick start
○ Strong motor power 1.1KW, speed adjustable
○ Coarse grinding and fine grinding can be realized in one step
○ Three modes optional: interval mode, reverse mode and press-and-play mode
○ Overload protection and safety lock design
| Technical Data | |
| Feed size | < 40mm |
| Final fineness | < 300μm |
| Speed | 2000-10000rpm |
| Time setting | 0：01-9：59（min/s） |
| Batch quantity | 150-700ml |
| Interval mode | Yes |
| Knives | stainless steel,titanium alloy |
| Number of blades | 2 |
| Rated power | 1.1KW |
| Power supply | 220V，50/60Hz |
| Instrument size | 260*343*454mm |
| Package size | 480*550*720mm |
| Net weight | 16kg |
