Details

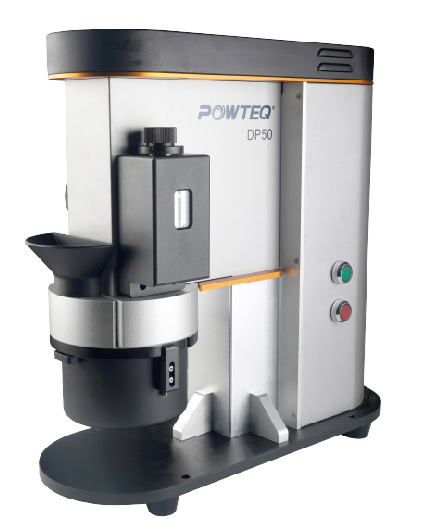

• Name: Soil Mill DP50
• Category: POWTEQ

Description

Feed size:<2mm

Final fineness:<75 µm (95%)

Speed:800 rpm

Description

Soil mill DP50 is a fine grinding instrument. Not like other vertical disc designed mill in market, its discs stacked up and down in level, size reduction under 75 microns for mid-hard and brittle samples very fast. The reduction taken placed in a fixed mill disc and a moving mill disc. Easy handling, efficiency milling and less residual in mill chamber make DP50 a favorable choice for large batches environmental soil tests.

Application

Soil, building material, nuclear ore, cement, concrete, cinder, coke, glass, porcelain, minerals, refractory clay, granite, monohydrallite etc.

Working principle

The comminution effects are generated by the pressure and friction forces caused by a moving disc rotate against a fixed disc right below. The sample enter to the mill chamber from the center of discs, it would be pre-crushed there and then moves to the outer regions of mill discs by centrifugal force to be finer grinded. The reduced particles fall into collecting pan through the milling discs outer regions after milling, so milling discs clean and sample collected.

Features and Advantages

○ By means of adjusting discs gap width precisely to achieve reproducible grinding result;
○ Preliminary grinding and fine grinding both can be done;
○ Mill chamber worked with hinge design, easy to clean;
○ Long using time of milling discs;
○ Various materials of discs for contamination free grinding;
○ Dust-proof design.
